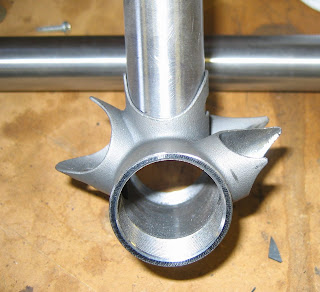

Finished BB / Seat Tube Notch
Good notch will allow BB to fit without a problem.read moreFinish the Notch

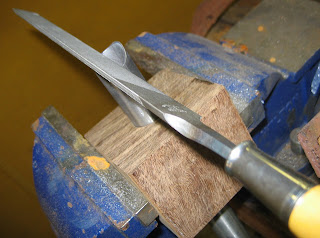

File the finishing touches on the tube. This is the most tedious part of all but the snugger the fit the less chance of frame distortion.read moreGrind Rough Notch on Grinding Wheel

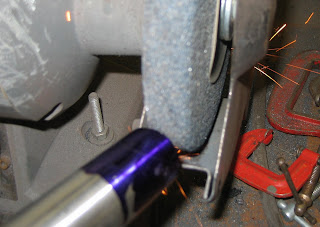

Carefully grind as close as you can to the scribe line.read moreRough Scribed Lug

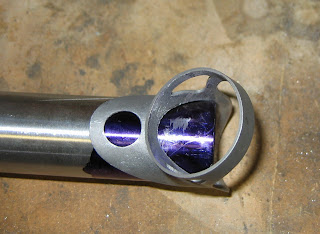

Hard to see the scribe line in the picture but it is there. Grinding/Filing to the line is the next step.read moreRough Marking for Notch Cuts using Lugs as a Guide

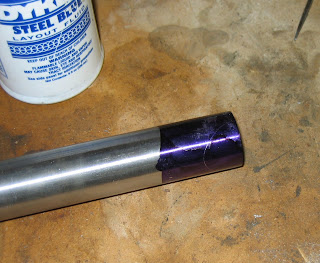

Blue the tubing and scribe the notch via the lug. Pictured here is the top tube and top head tube lug.read moreHenry James Jig - BB Drop and Chainstay Length

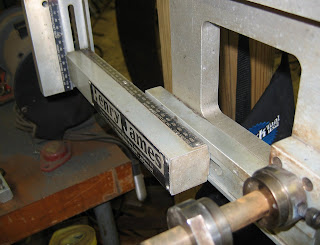

Setting up Henry James Jig for chain stay length and BB drop.read moreHenry James Jig - Seatpost Angle Setup
Setting the seat post angle on the Henry James Jig using the supplied HJ Protractor.read moreDoris gets some friends...
Doris looked lonely by herself so I made her some friends.read moreJump Through Hoops
